Cold core assembly molding line the biggest characteristic is no box modelling, compared with various clay sand molding line, can save molding line and cold core assembly molding line process characteristics. This kind of modeling can be flaskless molding, an independent unit production, or multiple unit at the same time, the production process characteristics, so that less investment, and the mechanization, automation line, mass production.
Cold core assembly molding line process features: the triethylamine cold core box core process, so that the cold core box shoot core machine to make the casting type and type, core, core group, type, casting, the modeling process of the box core is cold core assembly molding process.
Cold core assembly molding line: no box shape and various kinds of clay sand shape compared to can saving molding line and sand processing workshop of large investment, high and other process compared to the cold core box modeling the production efficiency of the process.

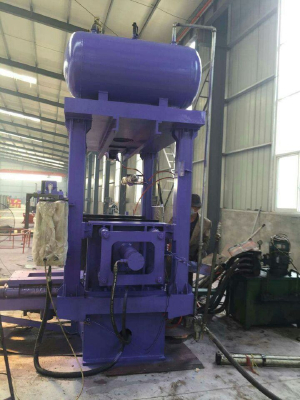

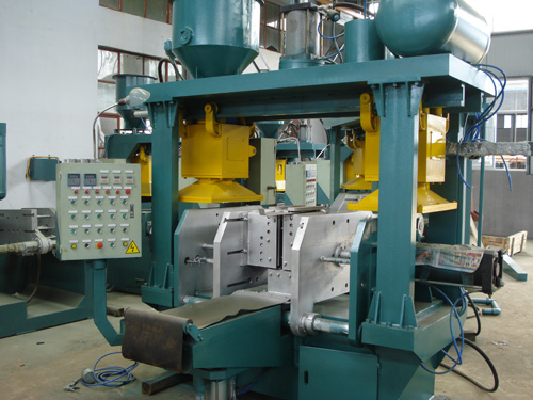

Working principle of cold core machine:
The whole shooting parts in the sand position, sand core sand inflow valve open, ejection cylinder through the gate (quantitative monitoring), after adding sand, sand shooting part to the box above the sand box together with the ejection cylinder in the cylinder pushing downward moving contact and core box, shooting head (2 a) in the pressure cylinder is driven by the connecting construction will push down the shooting head and ejection cylinder on flat contact and pressed by double head shooting, shooting head valve open ventilation, open the ejection head of piston, the gas tank of compressed air through the double head shooting, double shot barrel, shooting box (with two partitions separated into the box shoot) and plate nozzle core sand into the box, and then discharged gas, complete the core sand. After the completion of the shooting, shooting head rises, in under the impetus of the transposition cylinder, shooting sand box together with the ejection cylinder (with a core box sand shooting plate) moved to sand bit were again with sand, blowing amine also moved to the core box above the box, hydraulic cylinder again by bijective head connected component will shoot head (2) is pushed downward and blowing amine frame 2 of the pressing mechanism on plane contact and press, amine gas by amine blowing blowing core box, through chemical reaction, sand core curing forming.
